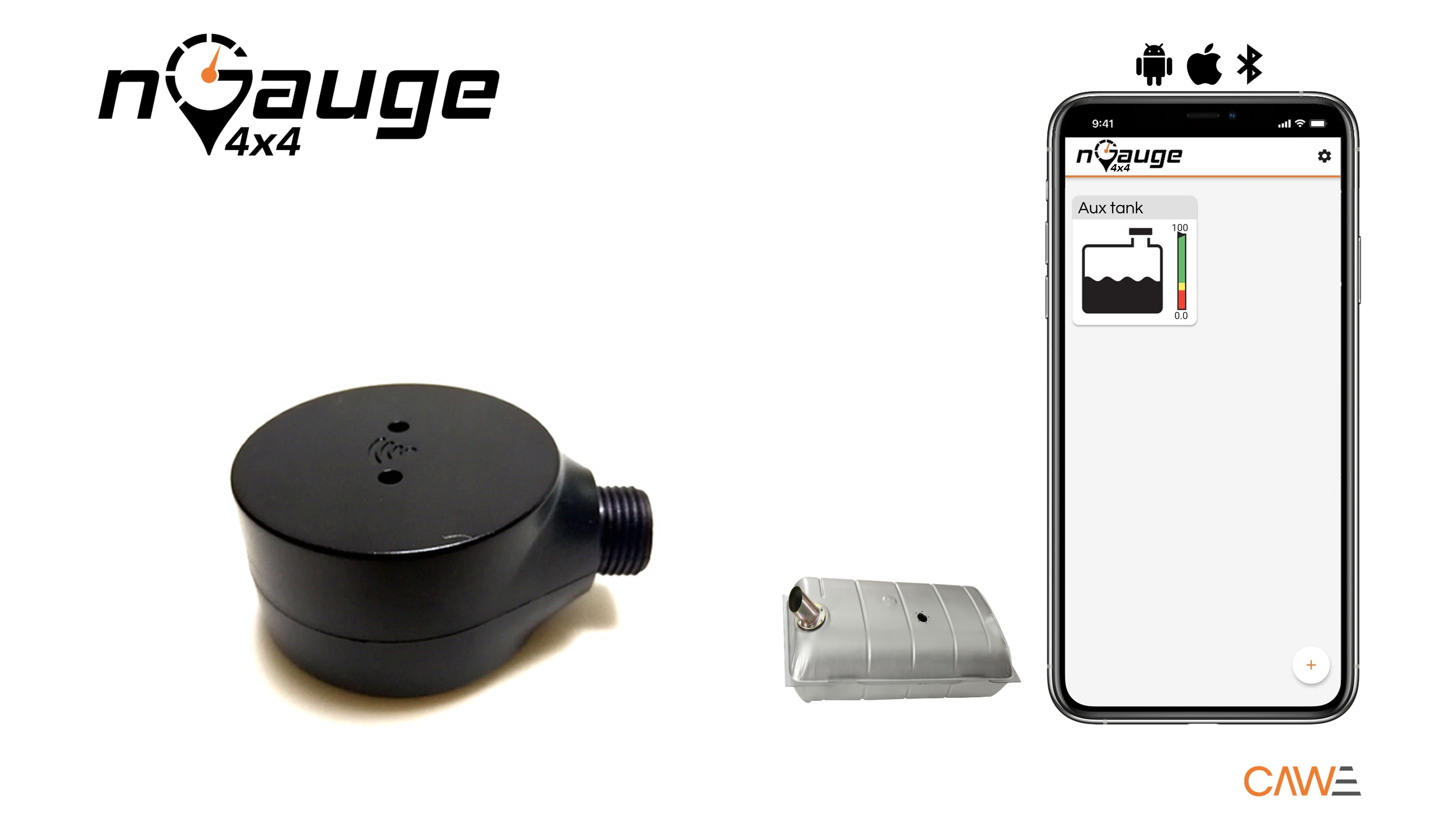

nGauge Gas Bottle Level Sensor

Ultrasonic Tank Level Sensor


Our stand alone ultrasonic tank level sensor can be used to measure fuel, water or any liquid inside of a tank.

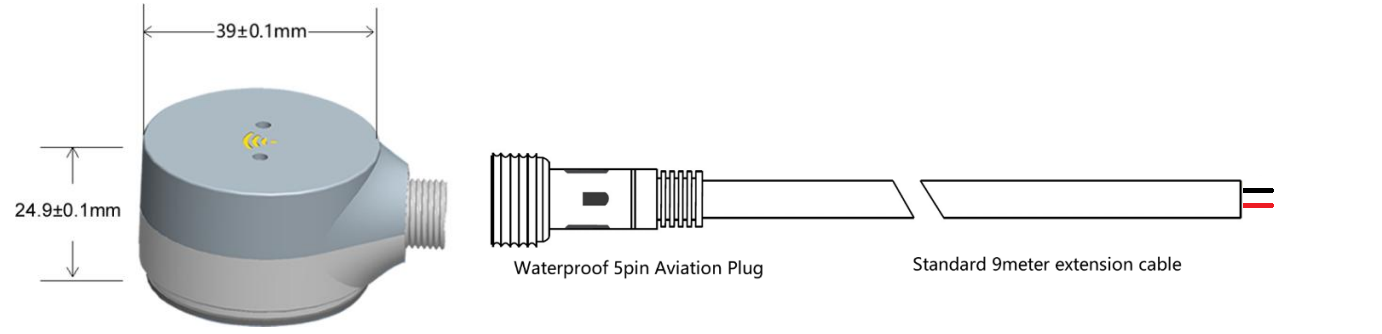

Features & Specification:

  • No Drilling Holes in Tank, Easy Installation
  • Support Any Liquid: Diesel, Gasoline, Water, etc.
  • Support Any Material Tank: Metal/Aluminum/Stainless Steel /Fiber/Plastic
  • Resolution: 0.1mm
  • Accuracy: 99.5%
  • Maximum Measuring Range: 100cm (Standard), 250cm (Pro)
  • Lowest Detection Hight(Blind Area): 3cm
  • Maximum Tank Thickness: 8~12mm
  • Output Interface: BLE Bluetooth 5.0
  • Built-in AI Algorithm to filter abnormal signal
  • IP68 waterproof





View full installation manual here


iOS / iPhone users, please note our Gateway is compulsory for the Ultrasonic Liquid Level Sensor to work.
